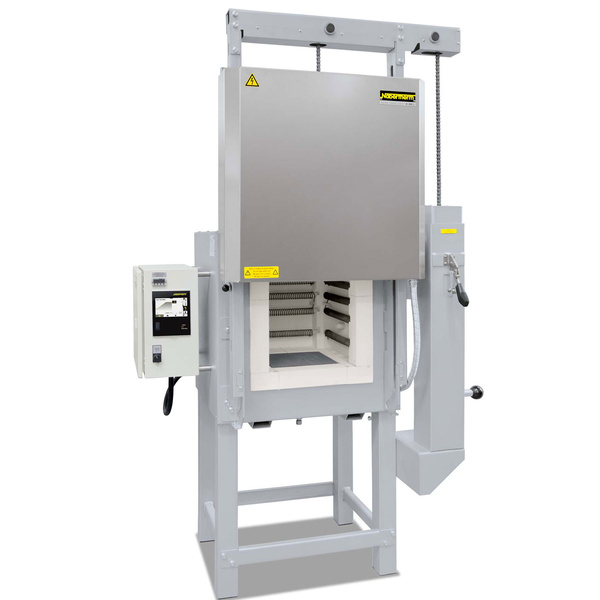

Chamber Furnace with Fibre Insulation LF 60/13/ C 540

Chamber Furnace with Fibre Insulation LF 15/13 - LF 120/14 These laboratory furnaces have proven themselves for many years as professional chamber furnaces for the laboratory. The furnaces are available either with a robust insulation of lightweight refractory bricks (LH models) or with a combined insulation of lightweight refractory bricks in the corners and low-storage, fast-cooling fibre material (LF models). With a wide range of additional equipment, these models can be optimally designed for the required process. Tmax 1300 °C or 1400 °C Double-walled enclosure construction with rear ventilation, thus low outer wall temperature Five-sided heating for very good temperature uniformity Heating elements on support tubes ensure free heat radiation and a long service life Controller suspended in the oven door and removable for convenient operation Protection of the bottom heating and level stacking support by recessed SiC plate in the bottom LH models: multi-layer, fibre-free insulation made of lightweight refractory bricks and special back insulation LF models: High-quality non-classified fibre insulation with masonry corner bricks for shortened cooling times and heat-up times Door with brick-on-brick seal, ground in by hand Short heating times due to high electrical connection values Self-supporting ceiling vault for high stability and maximum protection against dust infestation Quick-action door lock Motor-driven exhaust air flap Infinitely variable air supply slider in the floor of the oven Underframe included NTLog Basic for controller: recording of process data with USB stick Additional equipment Parallel swing door, swings away from the operator, for opening when hot Lifting door with electro-mechanical linear drive Separate wall-mounted or floor-standing cabinet for switchgear Cooling fan to shorten cycle times Protective gas connection for purging the furnace with non-flammable protective or reaction gases Manual or automatic gas supply system Weighing device for determination of loss on ignition Process control and documentation via VCD software package or Control Center NCC for monitoring, documentation and control
