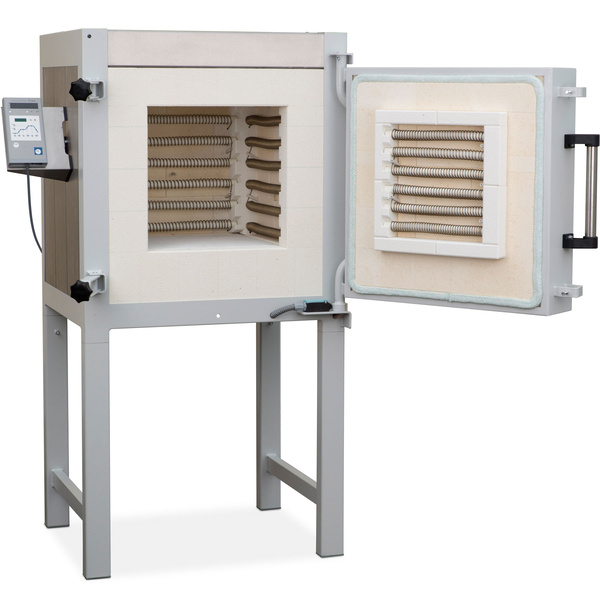

Thermconcept Chamber Furnaces KC KC 64/14

´Thermconcept Chamber Furnaces with 5-side heating Chamber furnaces for complex laboratory applications and simulation of production processes Extremely short heating up times, excellent temperature uniformity Double-walled casing with rear-ventilation to ensure low outer-casing temperatures Side walls and door of outer casing made of stainless steel, door lintel also made of stainless steel Swing door hinged to the right side Door safety switch Delivery including furnace base Efficient multilayer insulation made of high grade insulation panels and strong fire bricks for low heat losses, low energy consumption and low energy costs Heated from 5 sides (left, right, door, rear wall, bottom), excellent temperature uniformity in the chamber High grade heating elements on ceramic supporting tubes, mounted in front of the insulation for free heat radiation Bottom heating elements protected by silicon carbide plates with high mechanical strength and heat conductivity Also bogie hearth furnaces or chamber furnaces with individual sizes and temperatures for large scale production are available. Accessories: Parallel-guided door moving side-wards, with hot insulation surface to the rear, away from the operator Multi-zone control Pre-heating of process air Manually or automatically operated exhaust flap Controlled cooling system to accelerate cooling times and to remove waste gases Protective gas connection Manual and automatic gassing system Stackable charge trays and containers Catalytic and thermal waste gas treatment
